Here’s a Step By Step Guide to Measuring for Robe Doors

You Will Need

• Measuring Tape
• Notepad or Paper
• Pencil or Pen

• Measuring Width A
  • Bottom Width: At the bottom of the wardrobe opening

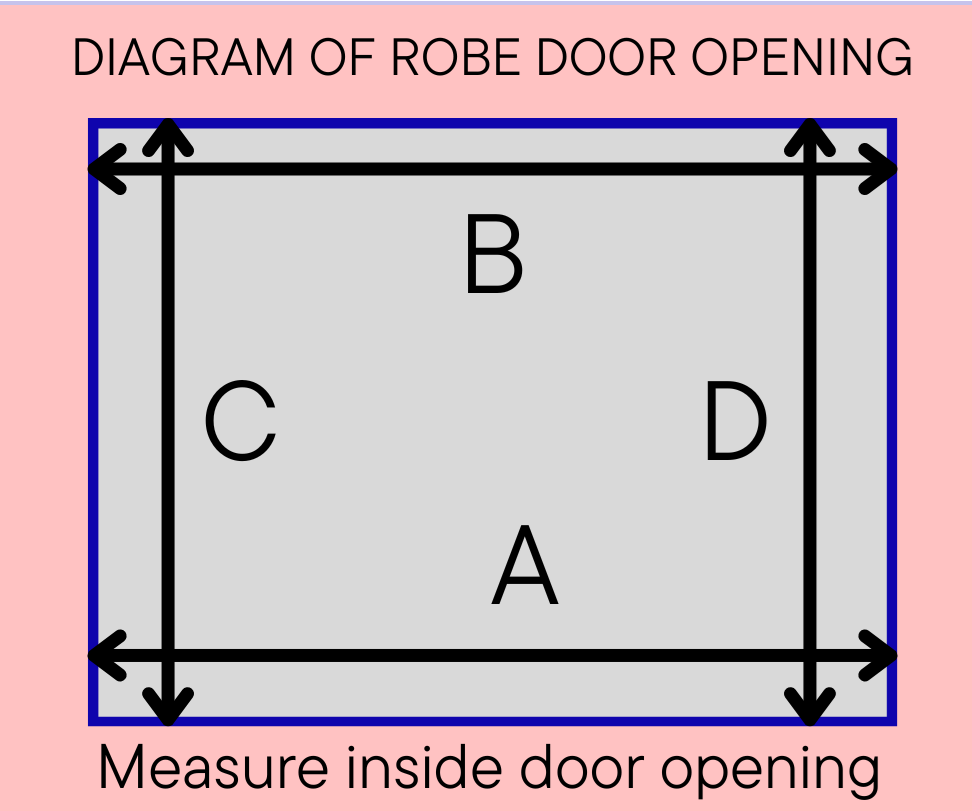

  • Measure across from the inside of one side to the inside of the opposite side (as shown in measurement A on the diagram)
  • Record this as the Bottom Width B.
• Top Width
  • Repeat the process at the top of the wardrobe
  • Measure across from the inside of one side to the inside of the opposite side (as shown in measurement B on the diagram)
  • Record this as the Top Width
• Measuring Height C. Left Height:
  • On the left-hand side
  • Measure from the bottom to the top of the wardrobe opening (as shown in measurement C on the diagram)
  • Record this as the Left Height D.
• Right Height:
  • On the right-hand side
  • Measure from the bottom to the top of the wardrobe opening (as shown in measurement D on the diagram)
  • Record this as the Right Height
• Optional:
  • Check Floor Levels Floor Level Check: Use a level to check if the floor is even.
  • If the floor is uneven by more than 10mm, consider installing a level floor batten to ensure smooth operation of the robe doors.

Notes

• Use a ladder if needed for accurate top measurements
• Following these steps will help ensure accurate measurements for robe doors, allowing for proper fitting and smooth functionality.

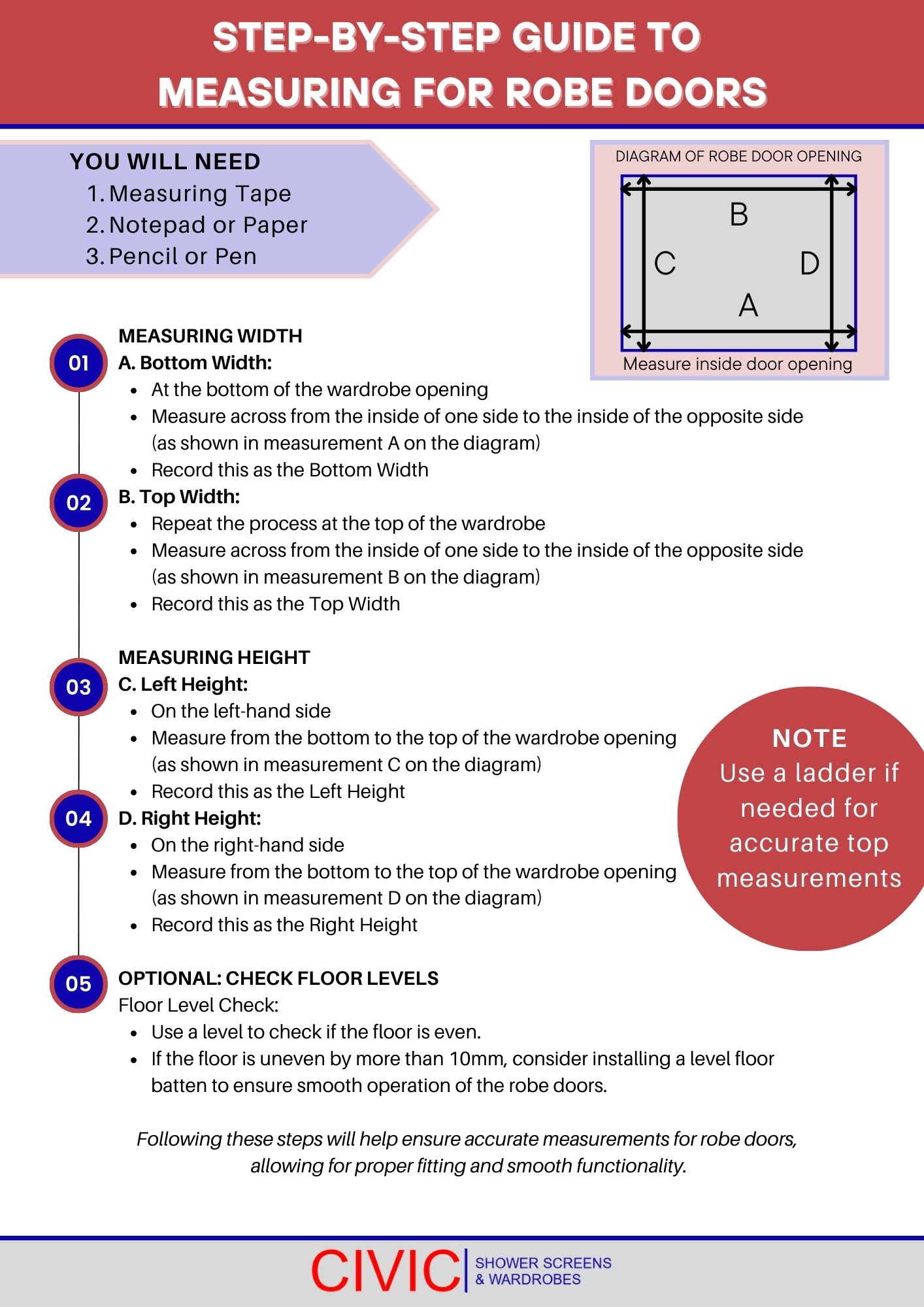

For a printable guide, download our step-by-step PDF on How to Measure for Robe Doors.
